Attributes

Color	Black
ESD	yes
Fastening material	1x cylinder head screw DIN 7984 M8x40,1x washer DIN 7349 8.4,1x T-nut groove 10 M8
Force [Fmax]	150N
Gross weight	0.152kg
Height	45mm
Length	55mm
Material	PA
Material information	Support wheel: PA,Fastening material: Steel, galvanized
Packaging unit	10
Profile slot	10
Scope of delivery	Incl. fastening material
Tensile force [Fmax]	100N
Weight	0.16kg
Width	55mm

• Support roller for constructing trolleys or roller sections
• Mounted on profiles with 10 mm slot
• Good running characteristics thanks to deep-groove ball bearing with large diameter
• Support roller with rim can be guided in 10 mm slot
• ESD-conductive
• 1 - Support roller for constructing trolleys or roller sections
• 2 - Mounted on profiles with 10 mm slot
• 3 - Good running characteristics thanks to deep-groove ball bearing with large diameter
• 4 - Support roller with rim can be guided in 10 mm slot
• 5 - ESD-conductive

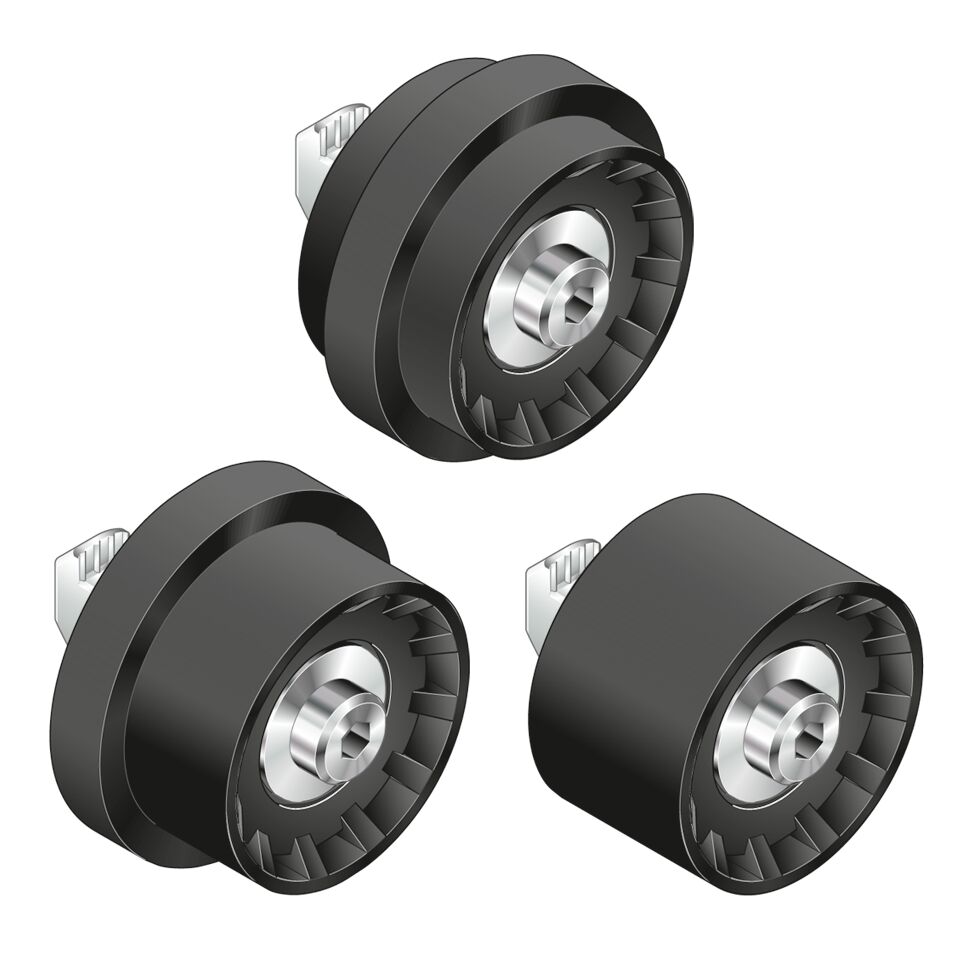

Support rollers with center rim
Support roller with rim can be guided in 10 mm slot, ESD conductive, Support roller for constructing trolleys or roller sections, Mounted on profiles with 10 mm slot, Good running characteristics thanks to deep groove ball bearing with large diameter
