Attributes

Code	WHS040
Productgroup ID	3
Reduction ratio	1.73
Typical efficiency	0.95
Order number	3608876081
Maximum torque	40Nm
Tool mount	3/8" square
Weight	0.6kg

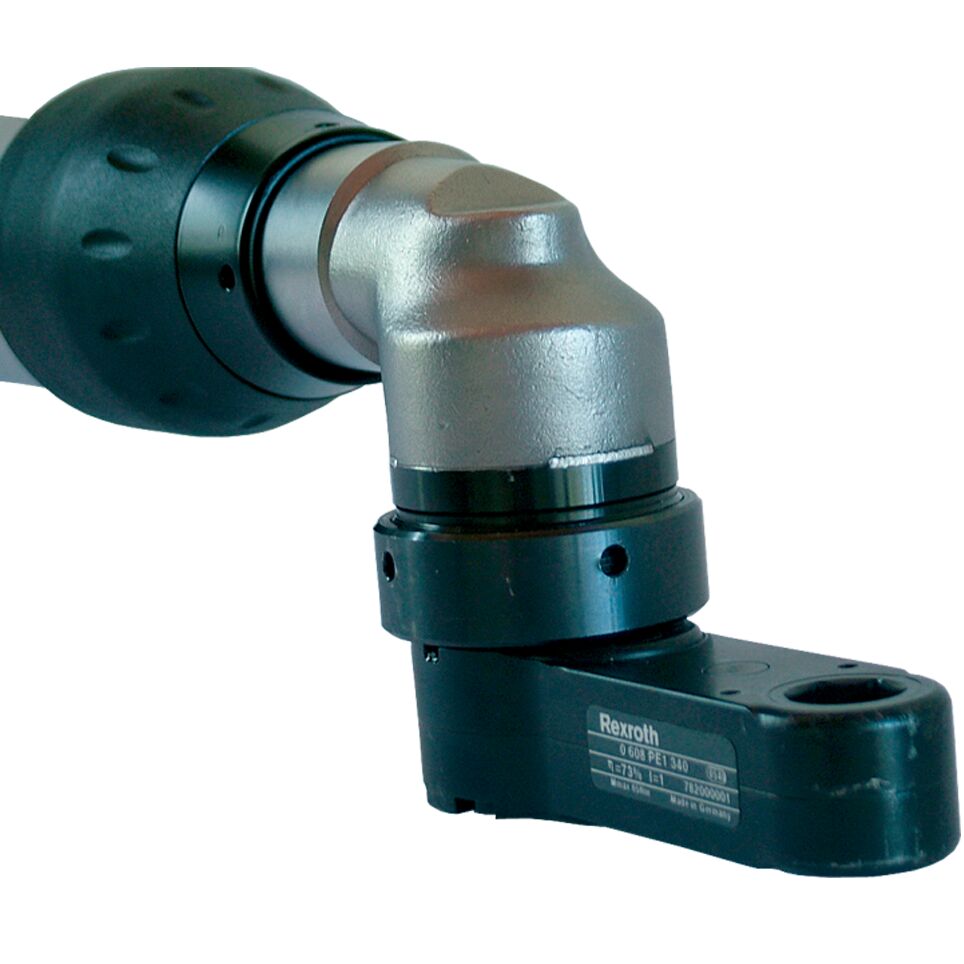

• You can mount different angle heads on the ErgoSpin VarioLine. This makes your ErgoSpin handheld nutrunner suitable for a variety of applications. With an angle head for special output drives, you can e.g. mount a crowfoot wrench to the VarioLine.

ANGLE HEAD WHS040 ESV025 3/8"SQ

You can mount different angle heads on the ErgoSpin VarioLine. This makes your ErgoSpin handheld nutrunner suitable for a variety of applications. With an angle head for special output drives, you can e.g. mount a crowfoot wrench to the VarioLine.

• 3D CAD
• Data Sheet

Suitable for	Tool mount	Maximum torque	Reduction ratio	Typ. efficiency	Code	Order no.
ErgoSpin ESV025	3/8" square	40 Nm	1.73	0.95	WHS040	3608876081
ErgoSpin ESV050	1/2" square	75 Nm	1.56		WHS075	3608876082
ErgoSpin ESV073		100 Nm	1.42		WHS100	3608876083
