Attributes

Weight	1.1kg
Code	CC-ESV012
Productgroup ID	3
Working range (max.)	12Nm
Working range (min)	2.4Nm
Order number	0608841090
Installation length	333mm
Maximum drive speed (1/min)	1090min⁻¹
Tool mount	Standard machine without output drive and with zero-play spur gearing for free connection of flat wrenches and special output drives
Weight	1.800kg

• Working range 2.4-146 Nm
• Max. output drive speed: 1090 rpm
• Extended application options in combinationwith handling devices and special output drives
• Can be used as a tightening spindle with output drive adapters
• Fully suitable for robot use
• Maintenance-free for 1 million full load cycles
• Suitable for function-critical tightening jobsin accordance with VDI/VDE 2862
• Integraded LEDs visible all around
• Current-controlled nutrunner

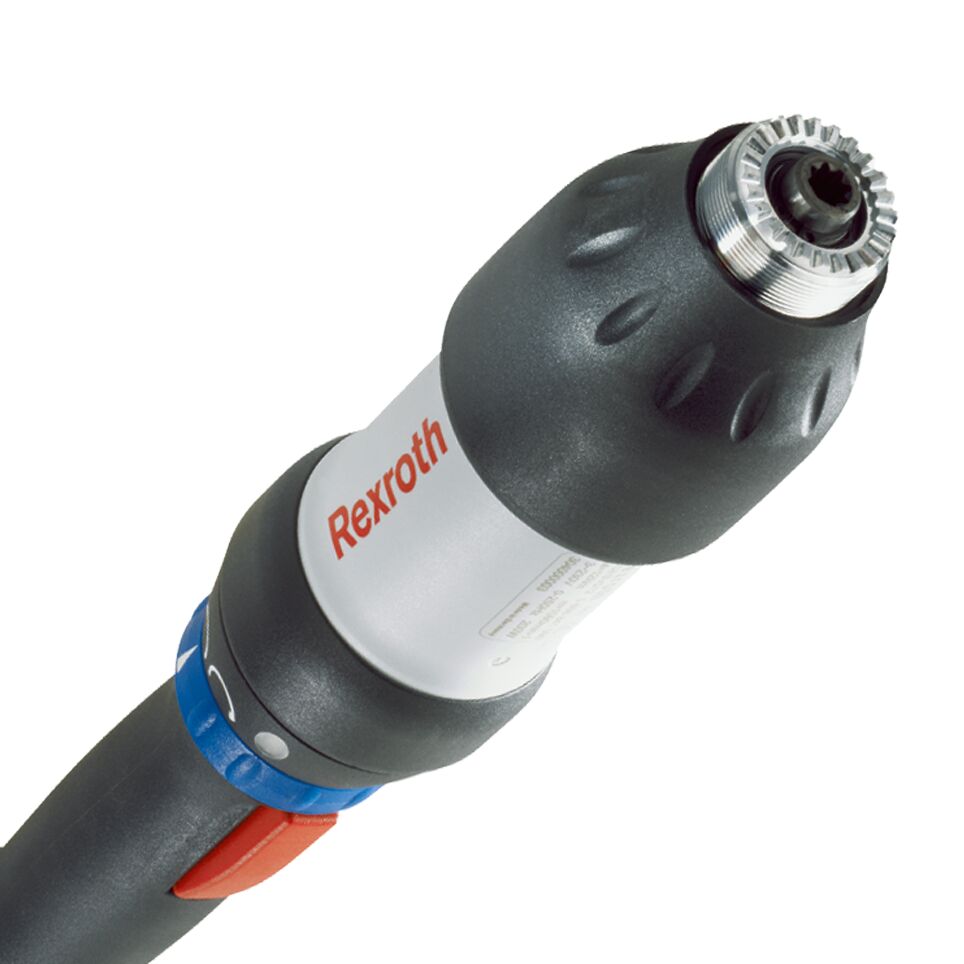

HANDHELD NUTRUNNER CC-ESV012 2.4-12NM

Maintenance free for 1 million full load cycles, Integraded LEDs visible all around, Can be used as a tightening spindle with output drive adapters, Fully suitable for robot use, Suitable for function critical tightening jobsin accordance with VDI/VDE 286

• 3D CAD
• Data Sheet

Holder for right-angle nutrunners ESA and NXA

Holder for right-angle nutrunners ESA and NXA



Adapter for handling devices

Adapter for handling devices

With and without holes



Turning suspension right-angle nutrunner ESA

Turning suspension right-angle nutrunner ESA



Stroke extension

Stroke extension

Mounting aid for angle heads

Mounting aid for angle heads



Start lever extension for straight nutrunners incl. vertical suspension

Start lever extension for straight nutrunners incl. vertical suspension



Vertical suspension

Vertical suspension



Angle head

Angle head



Angle head for special output drives

Angle head for special output drives



Straight output drives

Straight output drives



Output drive adapters

Output drive adapters



Work area	Max. output speed	Tool mount	Weight	Installation length	Code	Order no.
2.4 … 12 Nm	1090 rpm	Standard machine without output drive and with zero-play spur gearing for free connection of crowfoot wrenches and special output drives	1.1 kg	333 mm	CC-ESV012	0608841090
10 … 50 Nm	830 rpm		1.5 kg	376 mm	CC-ESV050	0608841093
29 … 146 Nm	420 rpm		2.8 kg	430 mm	CC-ESV146	0608841091
