STRAIGHT OUTPUT ESIQA012 E 1/4"QC

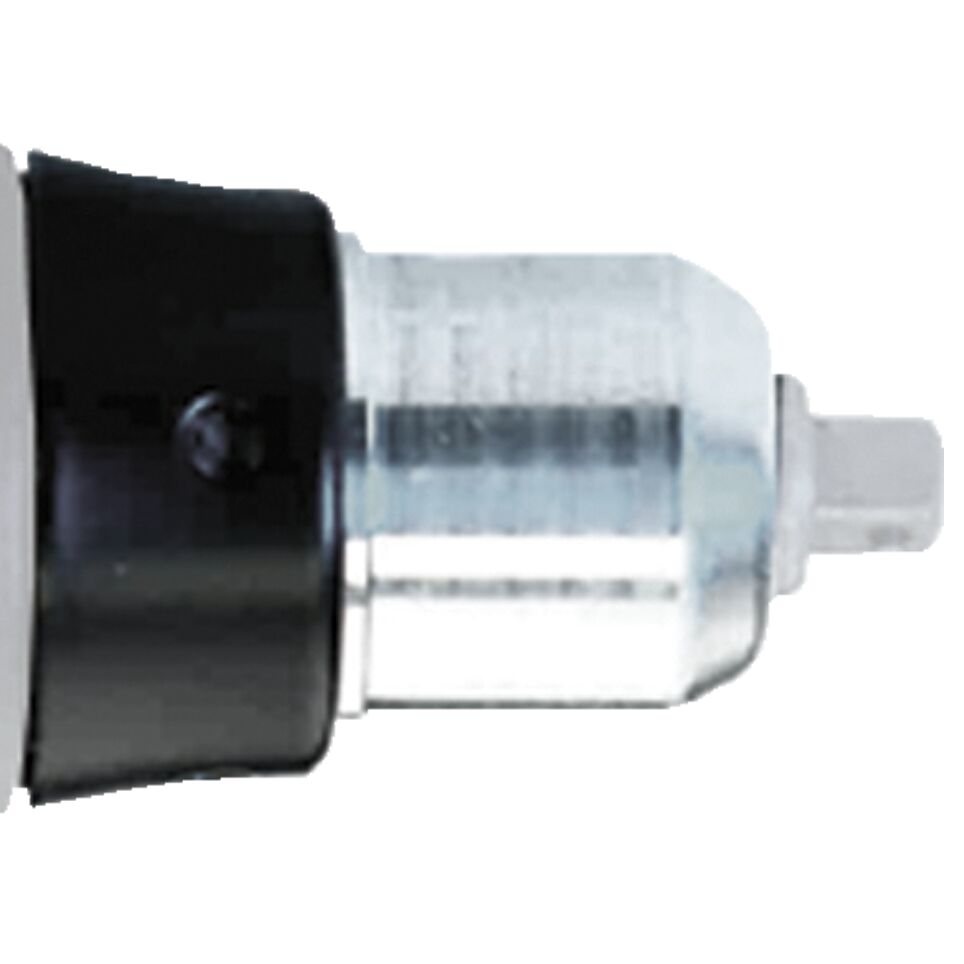

Straight output drives combined with the ErgoSpin VarioLine produce a straight nutrunner. The combination of VarioLine and straight output drives always delivers an ergonomic solution for tightening cases of up to 12 Nm: whether vertically suspended, as a / Material Number:0608810048

STRAIGHT OUTPUT ESIQA012 E 1/4"QC

Material #0608810048

Request Quote

Attributes

Weight 1kg
Code ESIQA012
Productgroup ID 3
Working range (max.) 12Nm
Reduction ratio 1
Working range (min) 2.4Nm
Typical efficiency 1
Installation length 31.5mm
Tool mount 1/4" quick-change chuck
Weight 0.188kg
  • Straight output drives combined with the ErgoSpin VarioLine produce a straight nutrunner. The combination of VarioLine and straight output drives always delivers an ergonomic solution for tightening cases of up to 12 Nm: whether vertically suspended, as a handheld straight nutrunner, a handheld application, or in connection with handling devices.
  • Special output drives on request
STRAIGHT OUTPUT ESIQA012 E 1/4"QC

Straight output drives combined with the ErgoSpin VarioLine produce a straight nutrunner. The combination of VarioLine and straight output drives always delivers an ergonomic solution for tightening cases of up to 12 Nm: whether vertically suspended, as a

ErgoSpin VarioLine

Output drives for ErgoSpin VarioLine

Code

Work area

Tool mount

Reduction ratio

Typ. efficiency

Weight

Installation length

Code

Order no.

ESV005 1 … 5 Nm 1/4" square 1 1 1 kg 31.5 mm ESISA012 0608810047
1/4" quick-change chuck ESIQA012 0608810048
ESV012/CC-ESV012 2.4 … 12 Nm 1/4" square ESISA012 0608810047
1/4" quick-change chuck ESIQA012 0608810048

Request Quote
