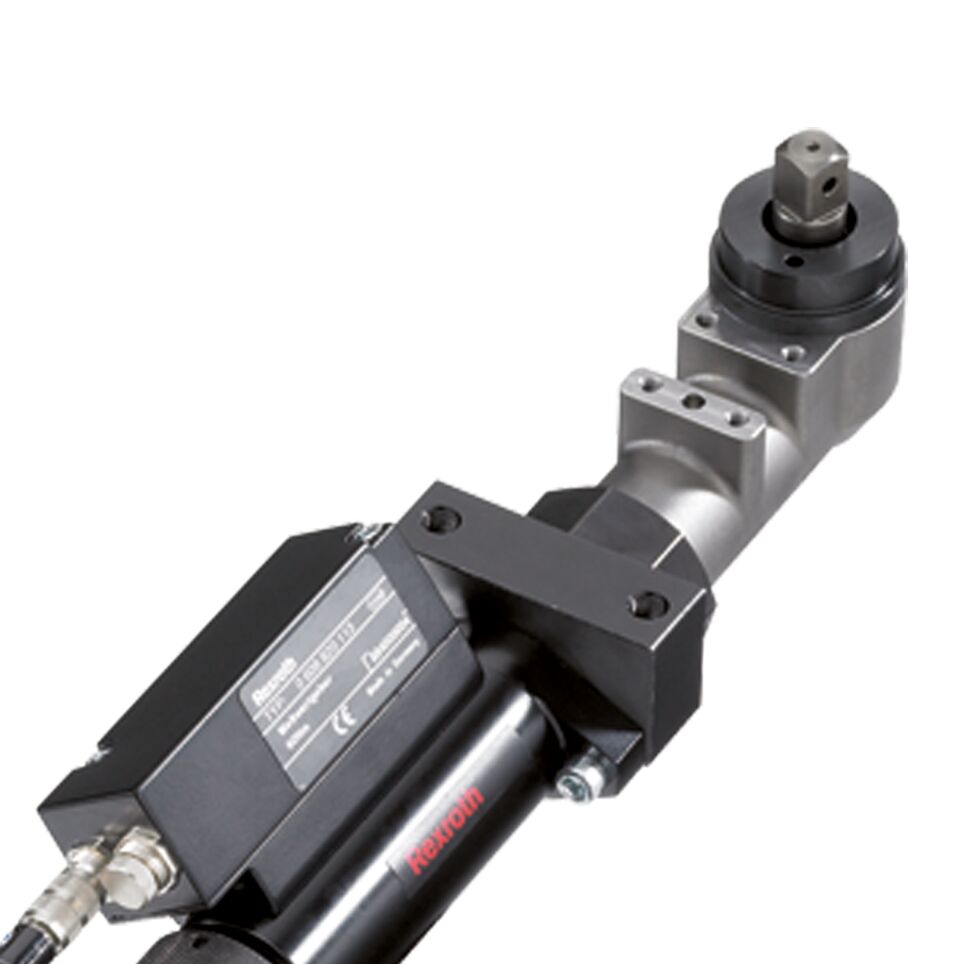

ANGLE HEAD 4W220 SZ4 3/4"SQ
| Weight | 3.2kg |
| Typical efficiency | 0.95 |
| Order number | 0608810046 |
| Maximum torque | 220Nm |
| Code | 4W220 |
| Productgroup ID | 3 |
| Working range (max.) | 220Nm |
| Reduction ratio | 1.67 |
| Working range (min) | 44Nm |
| Installation length | 141.5mm |
| Maximum drive speed (1/min) | 200min⁻¹ |
| Tool mount | 3/4" square |
| Weight | 3.53kg |
- Working range 26-220 Nm
- Max. output drive speed: 985 rpm
- For limited-access situations
- Precision toothing for high torque accuracy
- Incremental positioning (10° increments)
- Integrated fastening flanges
- With integrated measurement transducer on request
ANGLE HEAD 4W220 SZ4 3/4"SQ
For limited access situations, Precision toothing for high torque accuracy, Integrated fastening flanges, With integrated measurement transducer on request, Working range 26 220 Nm, Max. output drive speed: 985 rpm, Incremental positioning (10° increments
For limited access situations, Precision toothing for high torque accuracy, Integrated fastening flanges, With integrated measurement transducer on request, Working range 26 220 Nm, Max. output drive speed: 985 rpm, Incremental positioning (10° increments
|
Code |
4W130 | 4W220 |
|
Order no. |
0608810045 | 0608810046 |
|
Tool mount |
1/2" square | 3/4" square with centering pins |
|
Maximum torque |
130 Nm | 220 Nm |
|
Reduction ratio |
1.05 | 1.67 |
|
Typ. efficiency |
0.95 | |
|
Weight |
2.8 kg | 3.2 kg |
|
Installation length |
141.5 mm | |
