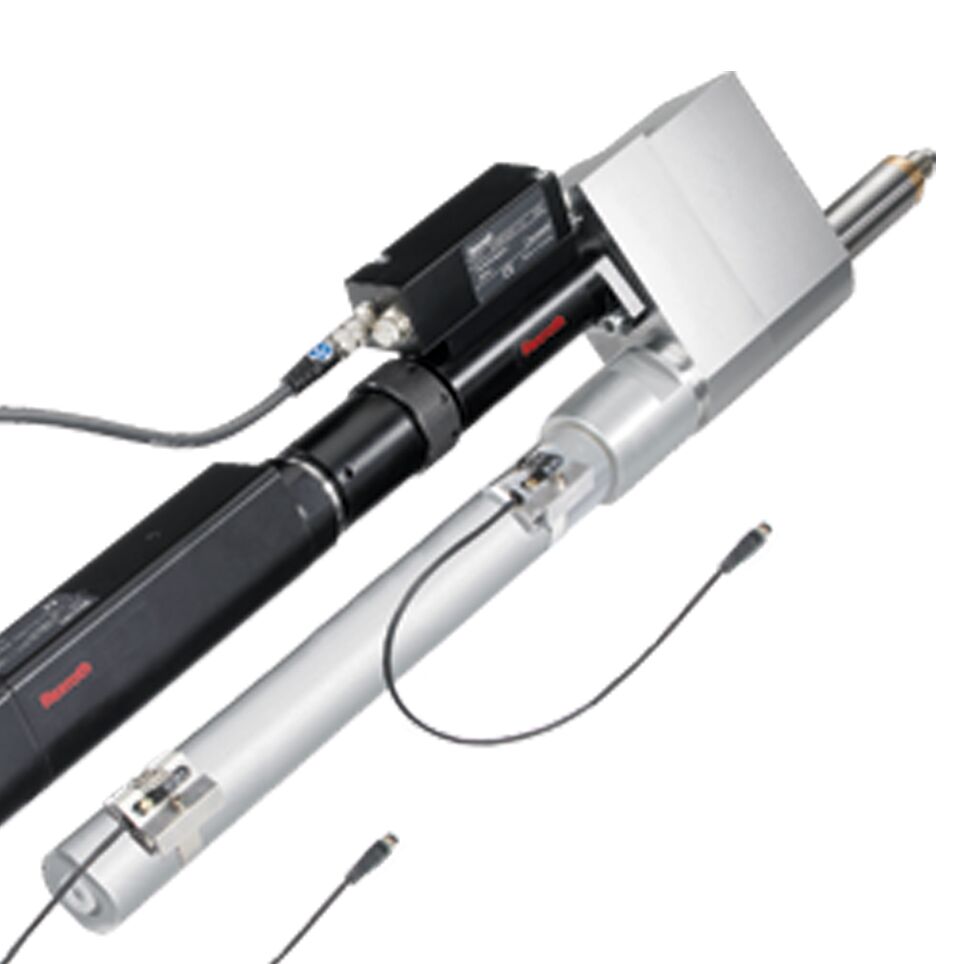

FEED OUTPUT DRIVE 2S1M8 SZ2 1/4"SQ

Working range 0.6-10 Nm, Max. output drive speed: 1000 rpm, Maintenance-free for 1 million full load cycles, Integrated feed movement, In connection with automatic screw supply, Standard tool mounts and compressed air connections / Material Number:0608800646

FEED OUTPUT DRIVE 2S1M8 SZ2 1/4"SQ

Material #0608800646

Request Quote

Attributes

Weight 2kg
Typical efficiency 0.93
Order number 0608800646
Maximum torque 10Nm
Code 2S1M8
Productgroup ID 3
Working range (max.) 10Nm
Reduction ratio 1
Working range (min) 1.2Nm
Installation length 189.5mm
Maximum drive speed (1/min) 780min⁻¹
Maximum air pressure 4bar
Length A <prefix>​<prefix/>80<suffix><suffix/>mm
Stroke 160mm
Tool mount 1/4" square
Weight 2.25kg
Nominal size 2
  • Working range 0.6-10 Nm
  • Max. output drive speed: 1000 rpm
  • Integrated feed movement
  • In connection with automatic screw supply
  • Standard tool mounts and compressed air connections
  • Maintenance-free for 1 million full load cycles
FEED OUTPUT DRIVE 2S1M8 SZ2 1/4"SQ

Working range 0.6 10 Nm, Max. output drive speed: 1000 rpm, Maintenance free for 1 million full load cycles, Integrated feed movement, In connection with automatic screw supply, Standard tool mounts and compressed air connections

Code

2S1M8 2S2M8

Order no.

0608800646 0608800647

Stroke

160 mm

Tool mount

1/4" square M6 external thread

Maximum torque

10 Nm 7 Nm

Max. air pressure

4 bar

Reduction ratio

1

Typ. efficiency

0.93

Weight

2 kg

Length A

80 mm

Installation length

189.5 mm
